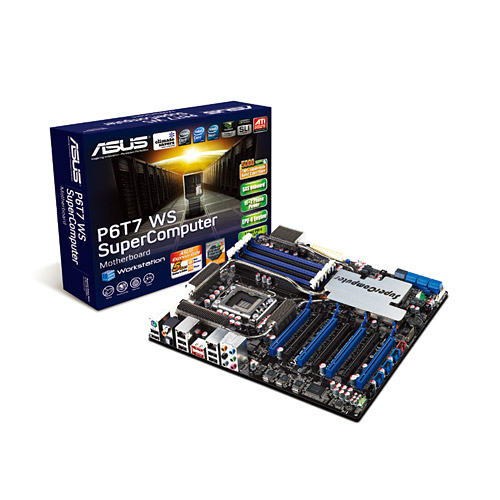

P6T7 WS SuperComputer

CUDA parallel computing power supported

The motherboard will achieve outstanding and dependable performance in the role of a Personal Supercomputer when working in tangent with discrete CUDA technology—providing unprecedented return on investment. Users can count on up to 4 CUDA cards(One of them should be Quadro graphic card) that are plugged into P6T7 WS SuperComputer for intensive parallel computing on tons of data, which delivers nearly 4 teraflops of performance. It is the best choice to work as a personal supercomputer on your desk instead of a computer cluster in a room.

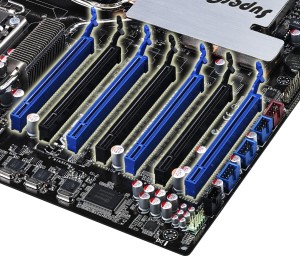

7 PCI-E Gen2 x16

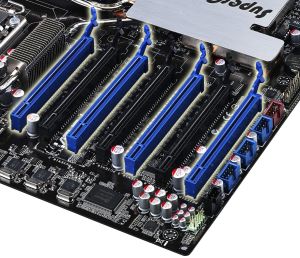

No matter what your preference is, seven PCI-E Gen2 x16 Slots gives you the sufficient I/O interfaces to fulfill your demand for graphic or computing solution. You’ll be able to run both multi-GPU setups. The board features SLI on demand technology, not only supporting up to three graphics cards in a 3 way SLI but also supporting up to four double-deck GPU Graphics cards. Whichever path you take, you can be assured of jaw-dropping graphics at a level previously unseen.

ASUS Heartbeat

Brightly and vividly lighting LEDs shine around the ASUS brand name on the motherboard after successful booting process. With the breath-like deep blue lighting shining in regular tempo, ASUS Heartbeat makes the motherboard as vivid as life.

SAS Onboard

P6T7 WS SuperComputer provides users with onboard SAS ports to support for hard drive upgration flexibility. SAS hard drive has safer, faster and more reliability for data trasfer and storage.

ASUS SASsaby Card Support

This motherboard is fully compatible with ASUS SAS card (the SASsaby card series, optional). Faster, safer and more stable, SAS will provide users with a better choice for storage expansion and upgrade needs.

LGA1366 Intel® Core™ i7 Processor Extreme Edition/Core™ i7 Processor

This motherboard supports the latest Intel® Core™7 processors in LGA1366 package with integrated memory controller to support 3-channel (6 DIMMs) DDR3 memory. Supports Intel® QickPath Interconnect (QPI) with a system bus of up to 6.4GT/s and a max bandwidth of up to 25.6GB/s. Intel® Core™7 processor is one of the most powerful and energy efficient CPUs in the world.

PCIe 2.0

This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.

CUDA Technology

NVIDIA® CUDA™ is a general purpose parallel computing architecture that leverages the parallel compute engine in NVIDIA graphics processing units (GPUs) to solve many complex computational problems in a fraction of the time required on a CPU.With over 100 million CUDA-enabled GPUs sold to date, thousands of software developers are already using the free CUDA software development tools to solve problems in a variety of professional and home applications – from video and audio processing and physics simulations, to oil and gas exploration, product design, medical imaging, and scientific research(From www.NVIDIA.com).

ASUS EPU-6 Engine

System Level Energy Saving
The new ASUS EPU - the world´ s first power saving engine, has been upgraded to a new 6 engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. With auto phase switching for components (which includes the CPU, VGA card, memory, chipset, drives and system fan), the EPU automatically provides the most appropriate power usage via intelligent acceleration and overclocking - helping save power and money.

ASUS TurboV

Feel the adrenaline rush of real-time OC - now a reality with the ASUS TurboV. This extreme OC tool lets you set new ambitions on the OC stage with an advanced and easy-to-use interface - allowing you to overclock without exiting or rebooting the OS. With micro adjustments of the CPU PLL, NB, NB-PCIe, and DRAM voltages in 0.02v intervals, there are no limits - only extreme results to break new OC records!

Best Quality Power Components

100% High-quality Japan-made Conductive Polymer Capacitors!(5000 hrs VRM)
Low RDS (on) MOSFETs with min. switching loss & lower temperature, Ferrite Core chokes with lower hysteresis loss, and 100% Japan-made high quality, long life conductive polymer capacitors.

Up to 20°C(36°F) Cooler - Stack Cool 2

Effective Fanless Heat Dissipation at 0dB
Stack Cool 2 is a fanless cooling solution offered exclusively by ASUS. It effectively and noiselessly transfers heat generated by the critical components to the other side of the specially designed PCB (printed circuit board) for effective heat dissipation - making temperatures cooler by up to 20°C.

Fan Xpert

Active Quiet & Cool
ASUS Fan Xpert intelligently allows users to adjust both the CPU and chassis fan speed according to different ambient temperature , which is caused by different climate conditions in different geographic regions and system loading.Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.

Q- Shield

Easy and Comfortable Installations
The specially designed ASUS Q-Shield does without the usual "fingers" - making it convenient and easy to install. With better electric conductivity, it ideally protects your motherboard against static electricity and shields it against Electronic Magnetic Interference (EMI).

CrashFree BIOS 3

Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.

O.C. Profile

Conveniently store or load multiple BIOS settings
Freely share and distribute favorite overclocking settings
The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.

SATA on the Go

The motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.

Dual Gigabit LAN

The integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. This capability ensures rapid transfer of data from WAN to LAN without any added arbitration or latency.

High Definition Audio

Enjoy high-end sound system on your PC!
The onboard 8- channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi- channel network games. All of these are done on one computer.
